Duco Acoustic Panel 300

Duco Acoustic Panel 300

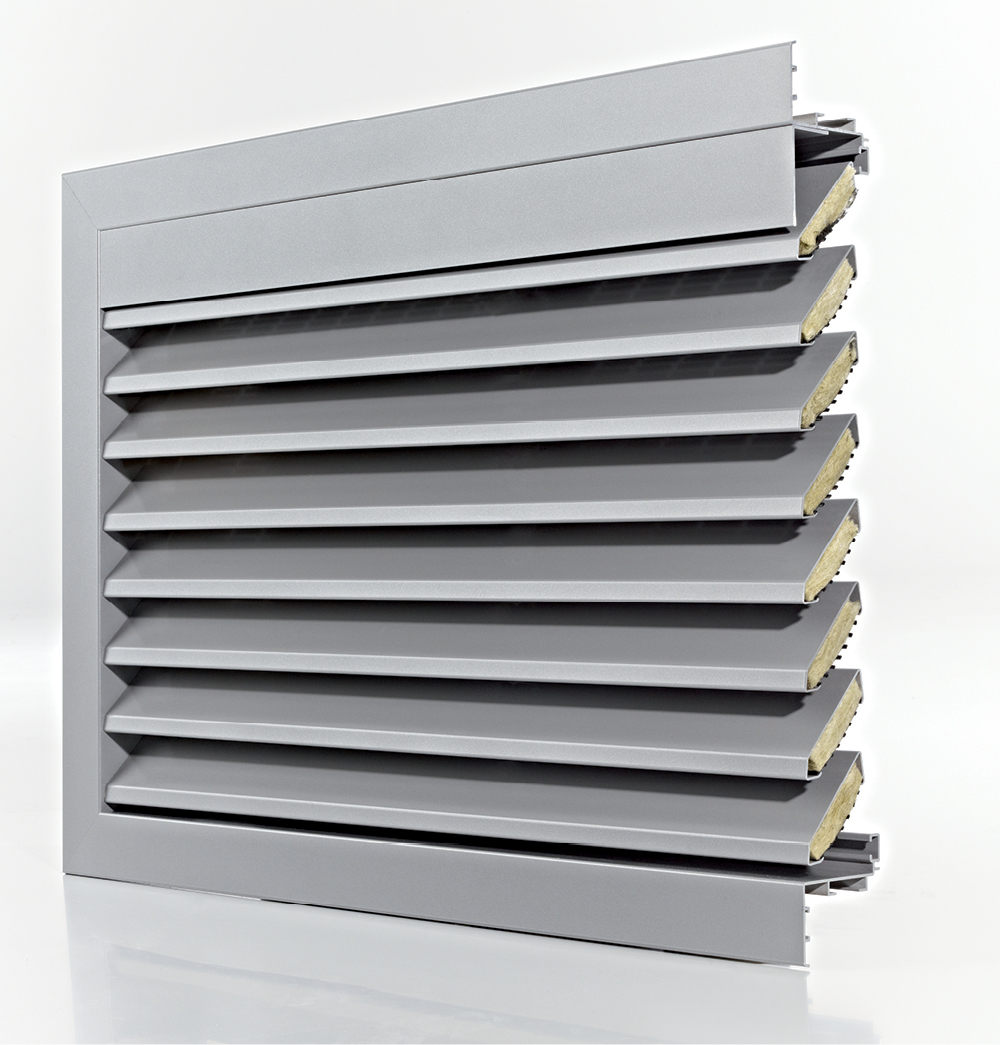

The Duco Acoustic Panel 300 is a sound attenuating built-in wall grille, crafted from extruded aluminium profiles and is always made to the desired size. The louvre blades are fitted with sound-attenuating, non-combustible mineral wool on the inside. Thanks to its solid construction, the Duco Acoustic Panel 300 has a high damping value of no less than 17dB.

Discover the benefits of acoustic ventilation

Technical features
Visual free area 71 %
Physical free area 31 %
K factor intake 26,57
K factor exhaust 27,41
Fitting Depth 303 mm
Blade pitch 130 mm
Frame flange 37 mm
Attenuation value Rw (C;Ctr) 17 (-1,-4) dB
Insect mesh (S= Standard / O= Optional)
Perforation P1
Perforation P2
SS insect mesh 2,3 x 2,3 mm O
SS bird mesh 6 x 6 mm O
SS bird mesh 20 x 20 x 0,5mm O
Watertightness (with insect mesh)
v = 0 m-s C
v = 0,5 m-s D
v = 1 m-s D
v = 1,5 m-s D
v = 2 m-s D
v = 2,5 m-s D
