DucoGrille Acoustic N 150
DucoGrille Acoustic N 150

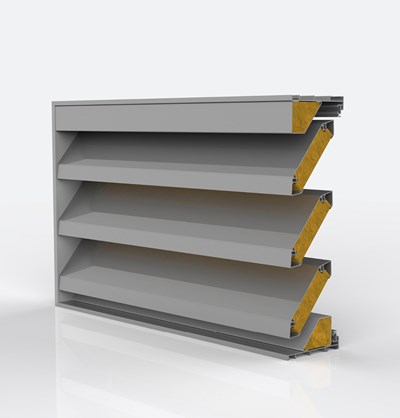

The DucoGrille Acoustic N 150 is a sound attenuating built-in wall grille, crafted from extruded aluminium profiles. The louvre blades are locked into place fast and easily on plastic blade holders, and are fitted with sound-attenuating, non-combustible mineral wool on the inside. Thanks to its solid construction, the DucoGrille Acoustic N 150 has a high damping value and a low resistance factor (and consequently a better flow rate).
Technical features
| Visual free area | 74 % |
| Physical free area | 35 % |
| K factor intake | 11,04 |
| K factor exhaust | 10,96 |
| Ce | 0,30 |
| Cd | 0,30 |
| Fitting Depth | 165 mm |
| Blade pitch | 150 mm |
| Attenuation value Rw (C;Ctr) | 11 (-1;-2) dB |
Insect mesh (S= Standard / O= Optional)
| Perforation P1 |
|
| Perforation P2 |
|
| SS insect mesh 2,3 x 2,3 mm | S |
| SS bird mesh 6 x 6 mm | O |
| SS bird mesh 20 x 20 x 0,5mm | O |
Watertightness (with insect mesh)
| v = 0 m-s | B |
| v = 0,5 m-s | C |
| v = 1 m-s | C |
| v = 1,5 m-s | C |
| v = 2 m-s | D |
| v = 2,5 m-s | D |
