DucoGrille Solid++ G 30Z
DucoGrille Solid++ G 30Z

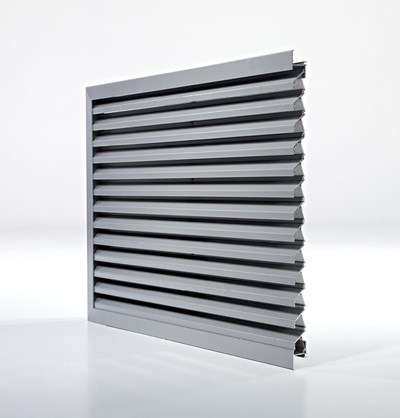

The DucoGrille Solid ++ G 30Z is a recessed mounted wall louvre manufactured from extruded aluminium profiles. The stackable blades are supported by a reinforced framework. This makes the louvre burglar resistant to security class 2, in accordance with the European standard. The perforated blade profiles act as an insect screen. The Z shaped blade ensures a robust design.
Technical features
| Visual free area | 60 % |
| Physical free area | 34 % |
| K factor intake | 17,7 |
| K factor exhaust | 19,13 |
| Ce | 0,24 |
| Cd | 0,23 |
| Fitting Depth | 38,4 mm |
| Blade pitch | 37,5 mm |
| Frame flange | 15 mm |
Insect mesh (S= Standard / O= Optional)
| Perforation P1 | S |
| Perforation P2 |
|
| SS insect mesh 2,3 x 2,3 mm |
|
| SS bird mesh 6 x 6 mm |
|
| SS bird mesh 20 x 20 x 0,5mm |
|
Watertightness (with insect mesh)
| v = 0 m-s | C(91,11) |
| v = 0,5 m-s | C(83,47) |
| v = 1 m-s | D(77,65) |
| v = 1,5 m-s | D |
| v = 2 m-s | D |
| v = 2,5 m-s | D |
