DucoWall Classic W 50Z/30°
DucoWall Classic W 50Z/30ø

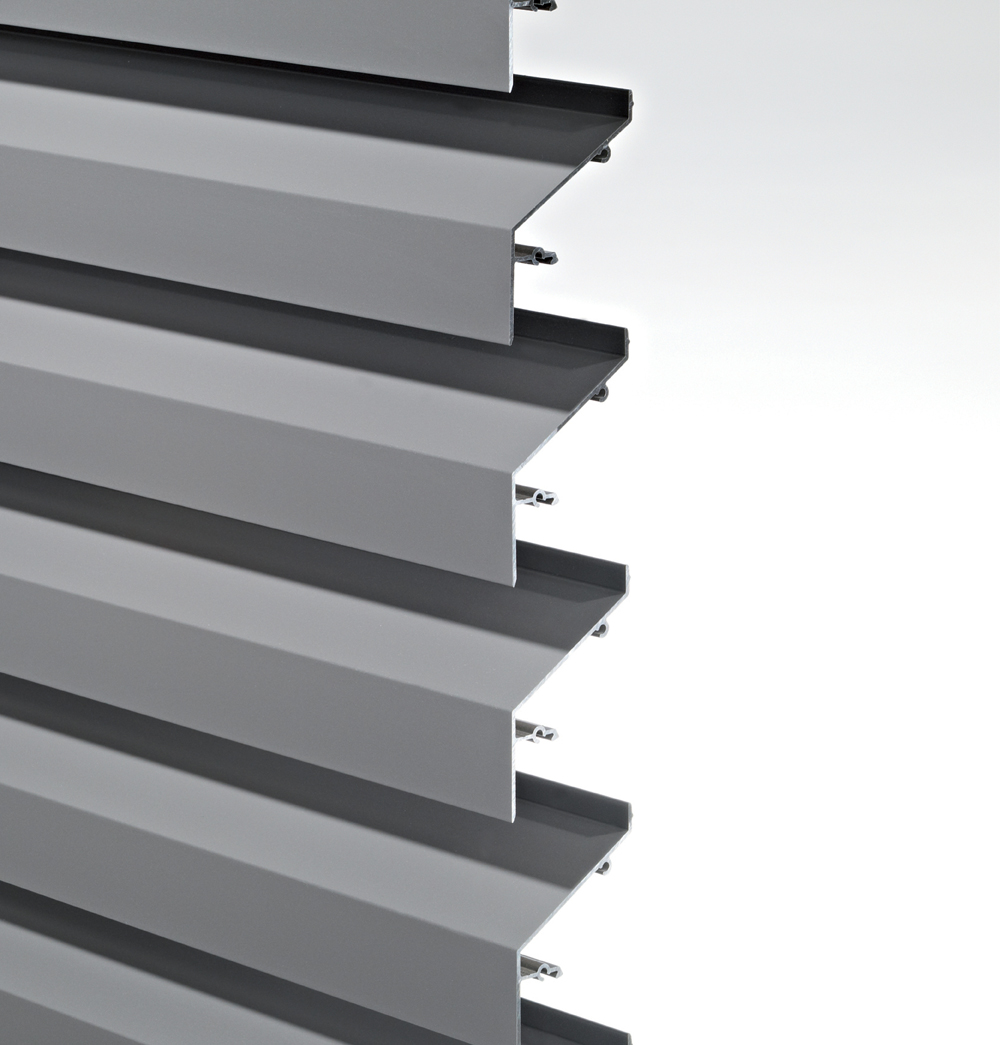

The DucoWall Classic W 50Z/30° series is a continuous louvre wall to be fitted to a supporting structure. The turn and click system ensures quick and easy installation. The Z-shaped louvre features a clean-cut design. The continuous blade louvres are available in 65 or 75 mm pitches.
Disappears from the range
Technical features
| DucoWall Classic W 50Z/30ø/65 | DucoWall Classic W 50Z/30ø/75 | |
|---|---|---|
| Visual free area | 41 % | 49 % |
| Physical free area | 40 % | 46 % |
| K factor intake | 14,54 | 10,23 |
| K factor exhaust | 10,52 | 8,66 |
| Ce | 0,26 | 0,31 |
| Cd | 0,31 | 0,34 |
| Fitting Depth |
65mm (50/12) 103mm (50/50 & 21/50 MULTI) 178 mm (50/125) mm |
65mm (50/12) 103mm (50/50 & 21/50 MULTI) 178 mm (50/125) mm |
| Blade depth | 53 mm | 53 mm |
| Blade pitch | 65 mm | 75 mm |
| Maximum span between 2 support mullions at 800 Pa and pressure coefficient 1.2 | 2050 mm | 2050 mm |
Mullions
| Type | Mullion 40/21 (light) | Mullion 40/70 (heavy) | Mullion 30/12 (light) | Mullion 50/12 (light) | Mullion 21/50 MULTI (heavy) | Mullion 50/50 (heavy) | Mullion 50/125 (heavy) | Mullion 40/47 (light) | Mullion 21/73 (heavy) | Mullion 40/102 (heavy) |
|---|---|---|---|---|---|---|---|---|---|---|
| DucoWall Classic W 50Z/30ø/65 |
|
|
|
|
|
|
|
|
|
|
| DucoWall Classic W 50Z/30ø/75 |
|
|
|
|
|
|
|
|
|
|
Insect mesh (S= Standard / O= Optional)
| Type | Insect/bird mesh |
|---|---|
| DucoWall Classic W 50Z/30ø/65 | O |
| DucoWall Classic W 50Z/30ø/75 | O |
Watertightness (with insect mesh)
| Type | v = 0 m-s | v = 0,5 m-s | v = 1 m-s | v = 1,5 m-s | v = 2 m-s | v = 2,5 m-s |
|---|---|---|---|---|---|---|
| DucoWall Classic W 50Z/30ø/65 | B(96,89%) | C(93,85%) | C(89,29%) | C(82,73) | D | D |
| DucoWall Classic W 50Z/30ø/75 | B(96,69%) | C(93,85%) | C(91,71%) | C(84,33) | D | D |
